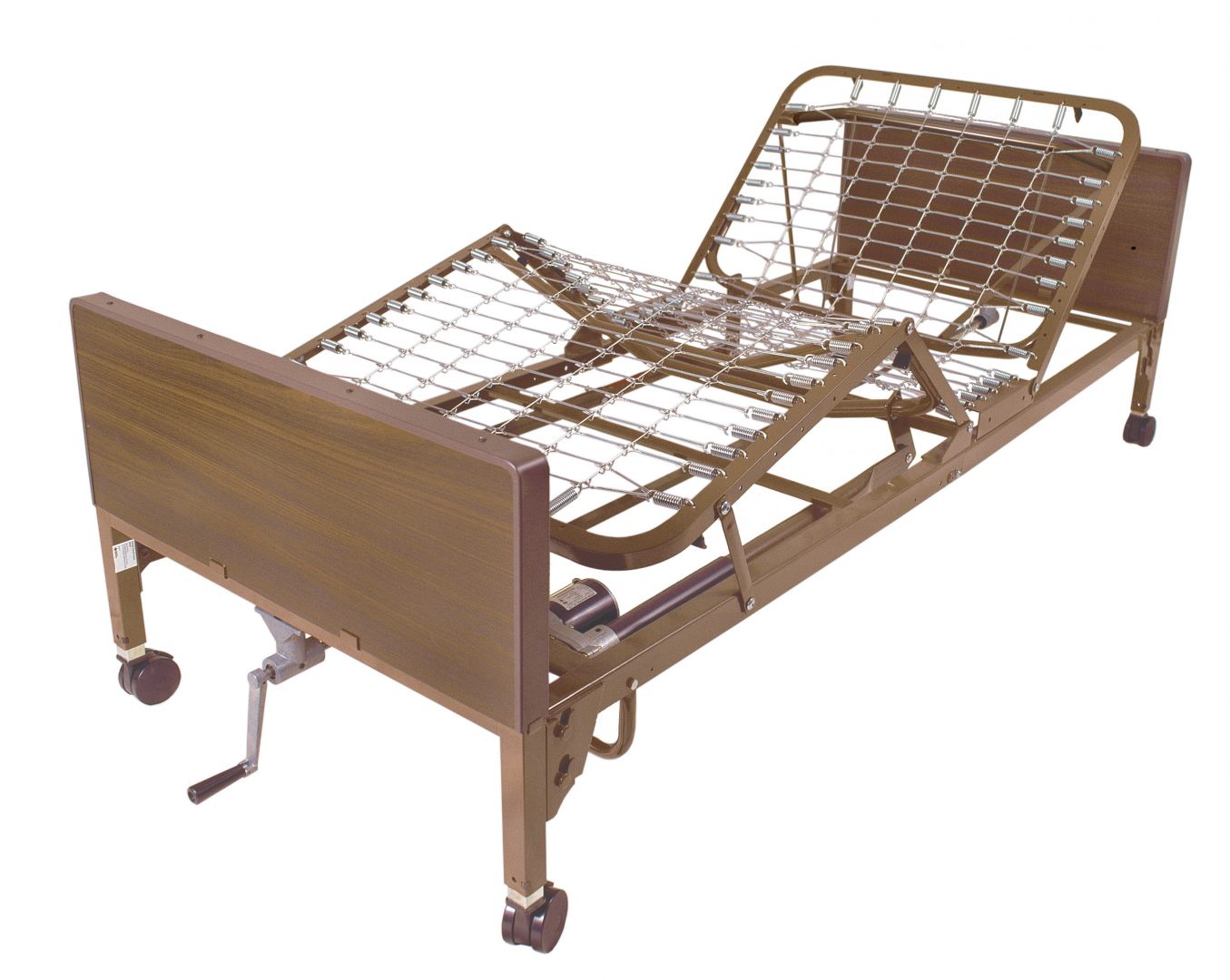

Semi Electric Bed

The Semi Electric Bed is perfect for anyone who needs a hospital style bed at home or in a nursing home. The Semi Electric bed has a motor which is quiet and smooth when operating the adjustment of the head and foot sections of the bed, while the height of the bed is adjusted manually. The frame of the bed provides superior strength and reduced weight due to its construction, while the spring deck is zinc coated to provide durability and to reduce corrosion effects. The hand control is easy to use and will operate the head and foot sections at the same time and has a convenient clip which attaches to the frame of the bed making sure the control is always by the patients side. The Semi Electric Bed is perfect for any home where someone needs additional assistance in bed and would like the added convenience of being able to adjust the sections of the bed.

Features and Benefits

• Heavy duty, bed ends are attractive in any decor and easy to maintain
• Head and foot ends are interchangeable with Invacare and Sunrise
• UL 73 pending, CSA approved
• Easy to set up
• Reinforced frame resists twisting and bending
• Quiet, smooth operation
• Side clips under angle iron store shaft when bed is unassembled
• Head and foot section adjust electronically
• Height adjusts manually
• Back and foot adjustment allow for an anatomically correct sleep surface
• Channel frame construction provides superior strength and reduced weight
• Zinc coated spring deck
• Pendant has clip that allows it to be mounted over bed rail
• Pendant will operate hand and foot section at the same time

Product Specifications

• Bed Height (Max): 19.5″
• Bed Height (Min): 12.5″
• Bed Height w/ Casters (Max): 22.5″
• Bed Height w/ Casters (Min): 15.5″
• Casters: 3″
• Foot Section Height (Max): 30.5″
• Foot Section Height (Min): 23.5″
• Foot Section Height w/ Casters (Max): 33.5″
• Foot Section Height w/ Casters (Min): 26.5″
• Footboard Height (Max): 30″
• Footboard Height (Min): 23″
• Footboard Height w/ Casters (Max): 33″
• Footboard Height w/ Casters (Min): 26″
• Ground Clearance: 3″-11″
• Ground Clearance w/ Casters: 6″-14″
• Head Section Height (Max): 44″
• Head Section Height (Min): 37″
• Head Section Height w/ Casters (Max): 47″
• Head Section Height w/ Casters (Min): 40″
• Headboard Height (Max): 32.25″
• Headboard Height (Min): 25.25″
• Headboard Height w/ Casters (Max): 35.25″
• Headboard Height w/ Casters (Min): 28.25″
• Motor: 15005MH-l (Head)
• 15005MF-L (Foot)
• Overall Product Height: 35.25″
• Overall Product Length: 89″
• Overall Product Width: 34.875″
• Primary Product Color: Brown
• Primary Product Material: Steel
• Product Weight Capacity: 450
• Product Weight Capacity: 450 lbs
• Warranty: Limited Lifetime on Welds; 5 Year Limited on Frame; 1 Year Limited on all Other Parts and Components

Model # 15004, 15004bv-fr, 15004bv-hr, 15004bv-pkg, 15004bv-pkg-1, 15004bv-pkg-1-t, 15004bv-pkg-2, 15004bv-pkg-t
