RAZ AP/SP Commode

Name: RAZ AP/SP Commode
SKU: 12664
Price: 1595.00 CAD
Availability: InStock

$1,595.00 (incl. tax)

Product Details

Free Delivery

Guarantee

Secure

Warranty

RAZ Rehab Shower Commode Chairs — Designed and manufactured to the highest standards of the discerning healthcare professional.

Description

Description

The RAZ-AP (Attendant Propelled) rehab shower commode chair comes standard with 4” of height adjustment, harmony back, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame is designed for easy side and front access by the user or attendant.
Only RAZ offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably centered around the ischial tuberosities for clients with a posterior or anterior rotated pelvis. With so many adjustments and options available, the RAZ-AP is a true prescriber-friendly, rehab shower chair.

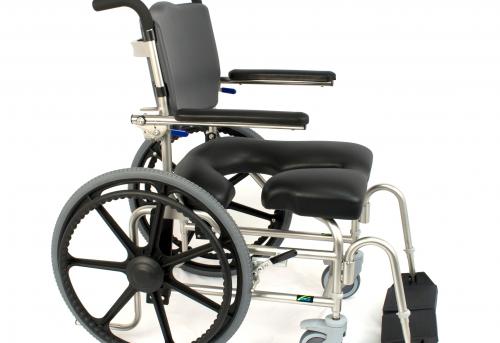

With the many adjustments and options available, the RAZ-SP (Self Propelled) will provide maximum comfort and maneuverability for users who require a self propelled shower commode chair.

Stainless steel frame & hardware
Adjustable frame height
Adjustable tension fabric backrest
Flip-up armrests
Commode Pan
Dual-locking casters

SPECIFICATION	RAZ-AP (Attendant Propelled)	RAZ-SP (Self Propelled)
SEAT WIDTH	18”	18”
SEAT DEPTH	16” or 19”	16” or 19”
SEAT ADJUSTMENT	Up to 2” (fore/aft)	Up to 2” (fore/aft)
SEAT HEIGHT (front seat to floor)	20” – 23”	20” – 22” (22” wheel) 20” – 23” (24” wheel)
CLEARANCE HEIGHT (under seat)	10” – 13” w/ pan 14” – 17” w/o pan 15” – 18” w/o pan bracket	10” – 13” w/ pan 14” – 17” w/o pan 15” – 18” w/o pan bracket
BACK TYPE – Standard w/ Fixed Ht, Flip-Up Arms	17” back ht. (Z505) 20” back ht. (Z514)	17” back ht. (Z505) 20” back ht. (Z514)
BACK TYPE – Optional w/ Adj. Ht/Angle, Flip-Up Locking Armrests	Adjusta-Back 17” back ht. (Z510) 20” back ht. (Z515)	Adjusta-Back 17” back ht. (Z510) 20” back ht. (Z515)
ARMREST HEIGHT	8.5” (Z505) 9.5” (Z514) 7” – 9.5” (Z510) 8” – 10.5” (Z515)	8.5” (Z505) 9.5” (Z514) 7” – 9.5” (Z510) 8” – 10.5” (Z515)
WIDTH BETWEEN ARMRESTS PADS	18.5”	18.5”
LATERAL ADJUSTMENT	2” vertical 1” fore/aft 0.5-1.5” offset	2” vertical 1” fore/aft 0.5-1.5” offset
FOOTREST ADJUSTMENT (from seat to footplate)	16”- 20.5”	16”- 20.5”
CASTER TYPE AND SIZE	Four dual-locking 5” casters	Two dual-locking 5” front casters
REAR WHEELS (treaded urethane tires)	Optional retrofit kit	22” standard 24” optional
OVERALL WIDTH	23.0” w/ std. arm pad 25.5” w/ Z715 arm pad	26” (outside hand rim)
OVERALL LENGTH w/ FOOTRESTS	40.2”	40.3” – 43.8” (22” wheel) 41.1” – 44.6” (24” wheel)
OVERALL LENGTH w/o FOOTRESTS	28.6”	28.7” – 32.2” (22” wheel) 29.5” – 33.0” (24”wheel)
WEIGHT CAPACITY	300 lbs.	300 lbs.
PRODUCT WEIGHT	38 lbs.	47 lbs.
FRAME MATERIAL & HARDWARE	Stainless steel	Stainless steel
Two year limited warranty on the frame against manufacturing defects. One year on all other components subject to normal wear and tear exclusions.
