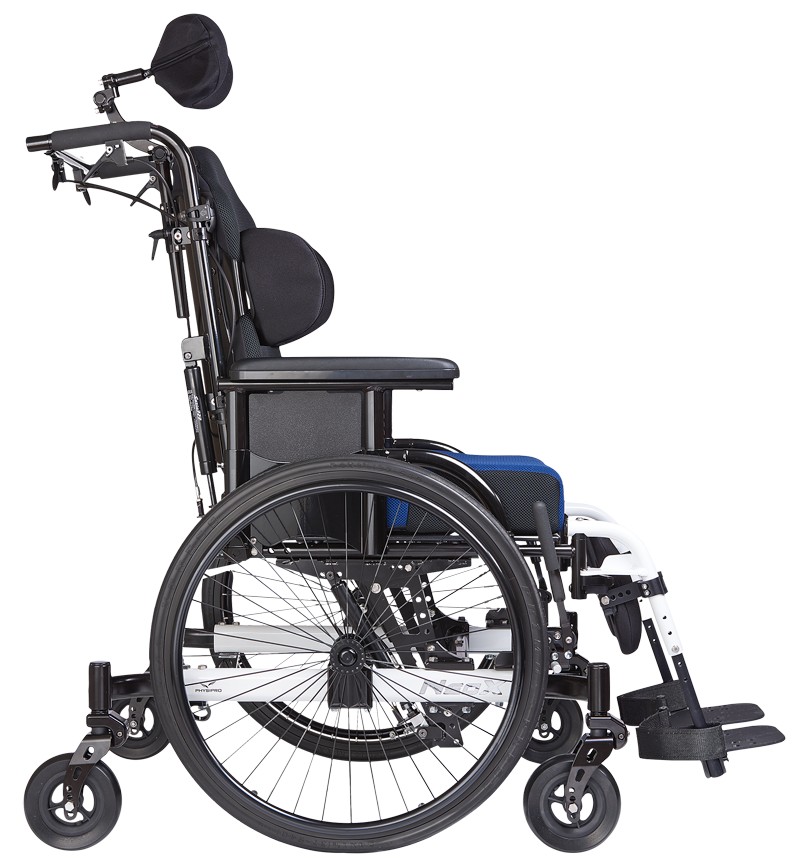

The NEOX™ incorporates advanced geometric design and revamped technology, resulting in a modern Tilt-in-Space wheelchair that combines strength, versatility, and maneuverability.
| Frame type | Tilt |
| Frame material | Aluminum |
| Seat depth | 14″ to 22″ |
| Seat width | Small frame 14″ to 19″ Extended frame 19″ to 22″ HD frame 20″ to 26″ |
| Front seat-to-floor height |
13″ to 20″ |
| Front wheel diameter | 5″, 6″, 8″ |
| Rear wheel diameter | 12″, 16″, 20″, 22″, 24″ |
| Transport weight | Neox 4 wheels 50.8 lb Neox 6 wheels 55.8 lb |
| Weight limit | Standard 250 lb Heavy Duty 350 lb Maximum tilt limited at 22° |
| Overall length | 42″ |
| Overall width | +8″ min / + 6″ for 20″seat width and over |
| Back height | 12″ to 25″ |
| Angle adjustable back | 85° to 115°, (5° increments) |

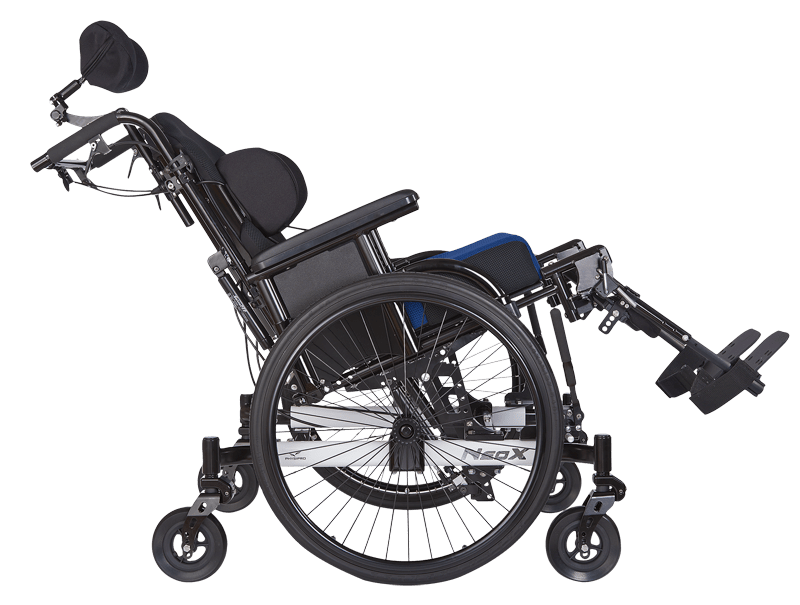

| Tilt | (-) 5° to 45° |
| Armrest | « U » Type 8 ¼″ to 12 ¾″ « U » Type lowered 6″ to 9″ |
| Footrest | 60° – 70° – 90° (foldable & adjustable in height by 5″ ) |
| Legrest | elevating/articulating legrest |
