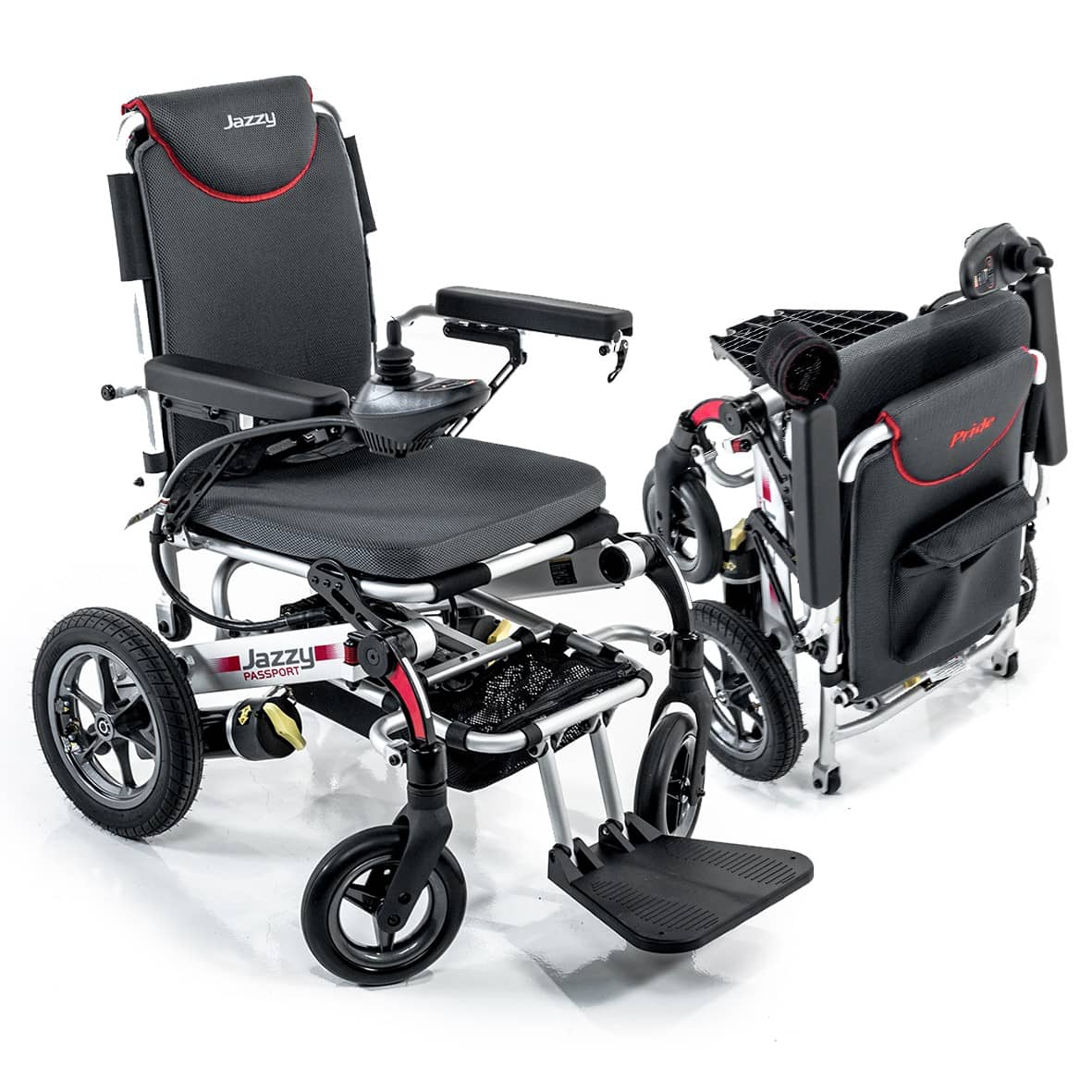

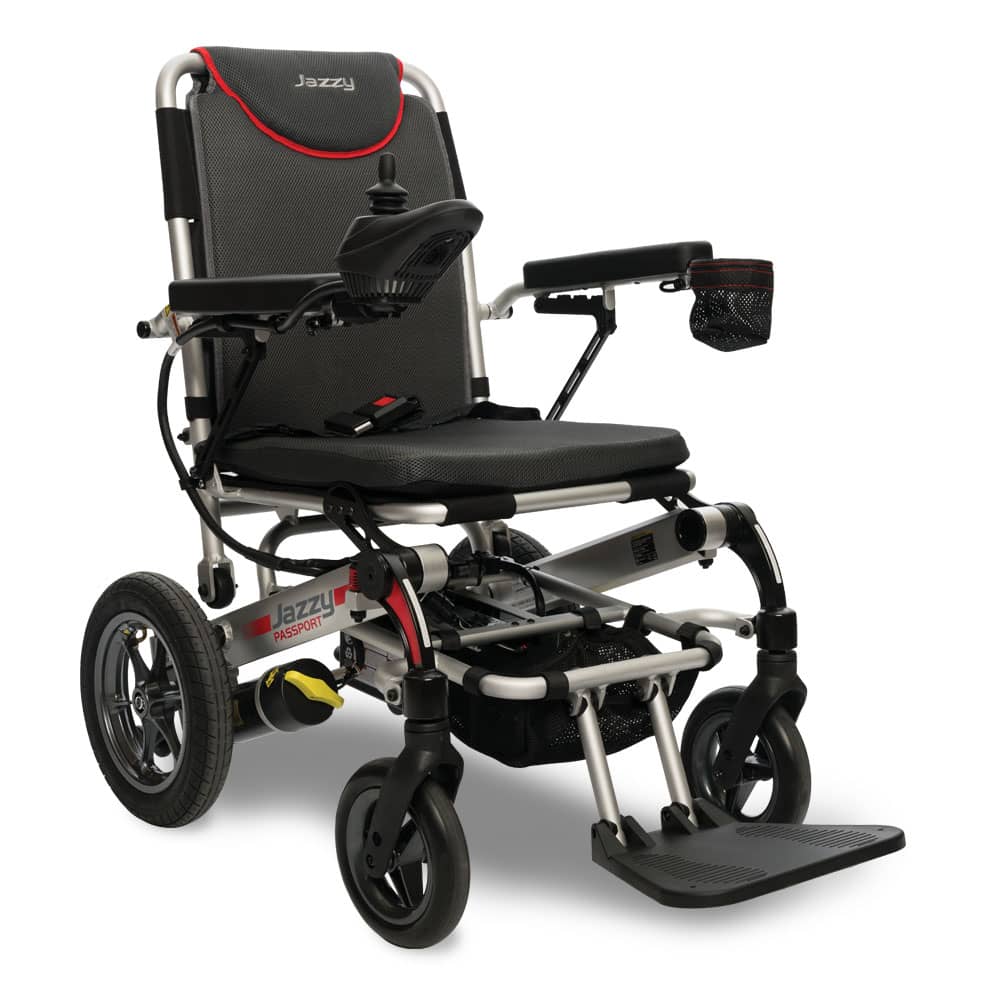

Simply fold and travel with the Jazzy® Passport. This compact power chair folds in just a few steps and offers convenient storage and ample foot room.
ID/SKU:
$4,299.00 (incl. tax)
Simply fold and travel with the Jazzy® Passport. This compact power chair folds in just a few steps and offers convenient storage and ample foot room.
Simply fold and travel with the Jazzy® Passport. This compact power chair folds in just a few steps and offers convenient storage and ample foot room. Travel in comfort with the Jazzy Passport.

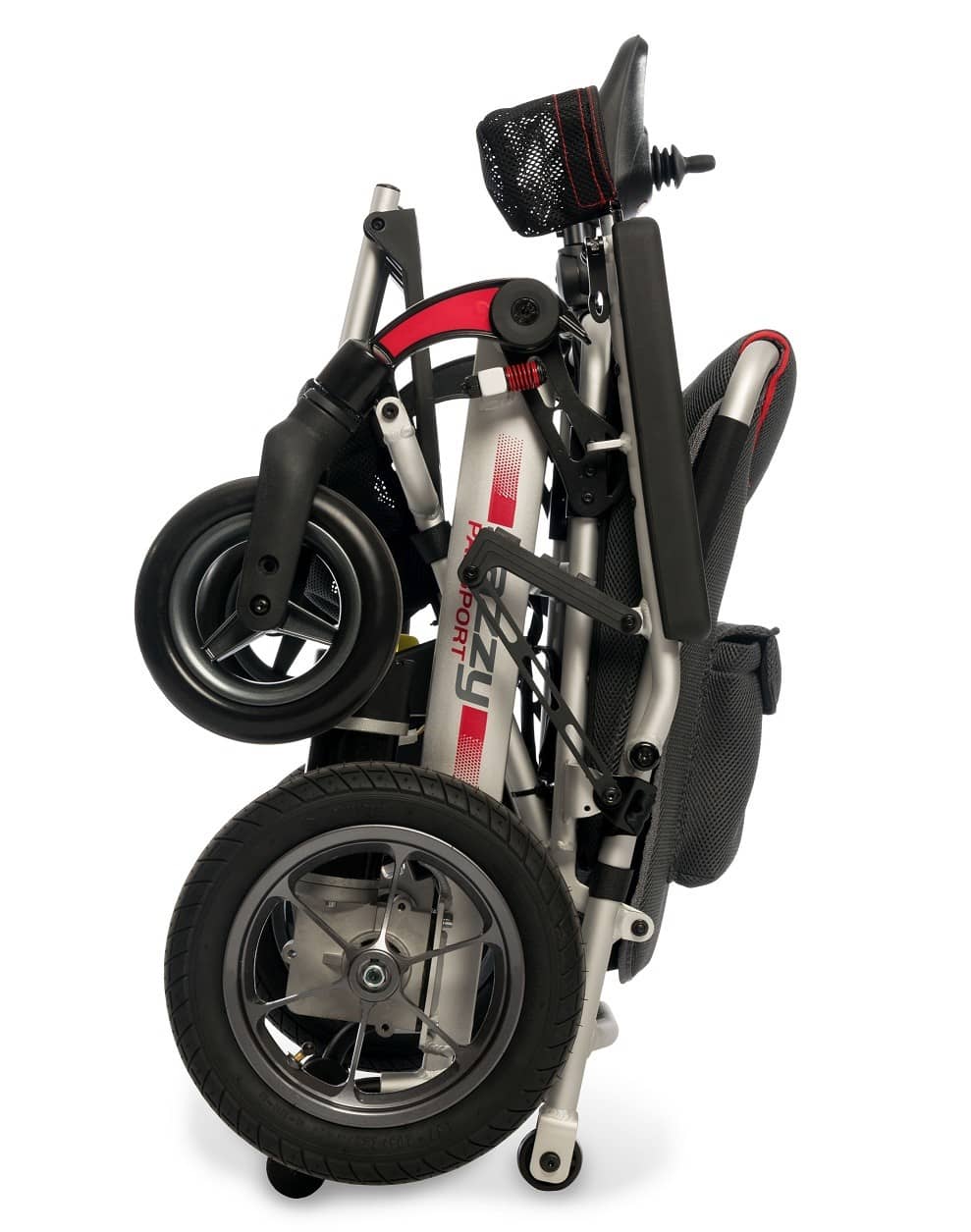

This unit simply folds in just a few simple steps.
Under seat storage bag and back seat pocket provide convenient storage for your on-the-go lifestyle.
Keeps your drink close at hand.
Large foot platform provides extra comfort.
| Model |
Jazzy Passport
|
| Weight Capacity | 250 lbs. |
| Maximum Speed1 | Up to 3.6 mph |
| Ground Clearance3 | 3” at motor |
| Overall Length3 | 40” |
| Overall Width3 | 23.6” |
| Seat-to-Ground Height | 19” |
| Seat-to-Foot Platform Height | 14.5” (no adjustment) |
| Casters | 8” solid |
| Drive Tires | 12” Pneumatic drive |
| Suspension | Limited |
| Range Per Charge1,2 | Up to 9.6 miles |
| Total Weight Without Batteries3,5 | 53 lbs. |
| Heaviest Piece When Disassembled3 | N/A |
| Standard Seating | Material: Gray, Foam Dimensions: 17.5” x 16.5” |
| Drivetrain | 2X 180W brushed motors |
| Dual Braking System | Regenerative and electromechanical |
| Battery Requirements3 | 24 V 18Ah Lithium ion |
| Battery Weight4 | 7 lbs. |
| Battery Charger | 2-amp, off-board |
| Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%. 2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%. 4 Battery weight may vary based on battery manufacturer. 5 Includes standard seat weight. |
|
